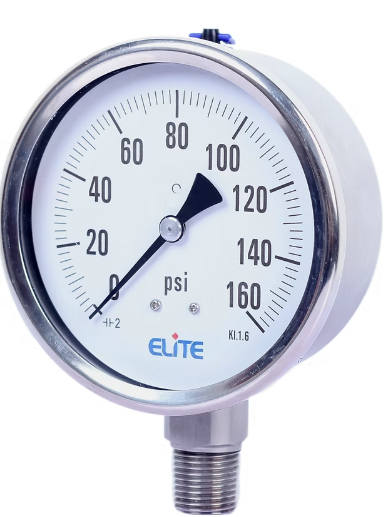

Details

---

Special Features

• Stainless Steel Case & Measuring System

• 316 L SS/304 SS Wetted Parts Welded With Case

• Helium Leak Tested

• Ready For Oxygen Use

• Standard Followed ASME –B.40.1

• IP:66

​

Specifications

• Ambient Temperature: -4°F(-20°C) to + 150°F (+65°C)

• Process Temperature: Max.392°F (200°C)

• Operating Pressure Range: 75% of Scale Value

• Over Pressure Limit: 125% of Max.Scale Value

• Case: AISI 304 SS

• Joints: Tig Argon Arc Welding

• Socket: AISI 304 SS

• Bourdon: AISI 316L SS

• Movement: Brass

• Dial: Aluminum

• Pointer: Fixed

• Window: PC Lens

• Range: Vacuum to 10,000psi
