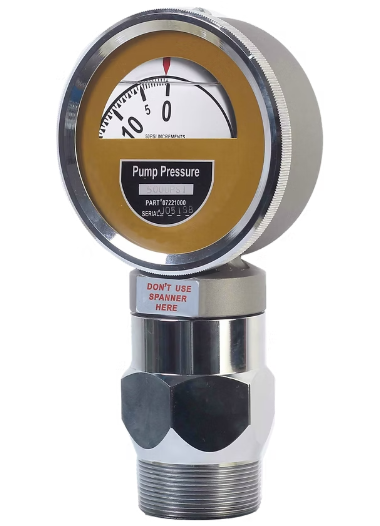

Details

---

Special Features

• Provide accurate Pressure Reading and Built In Dampening

• Liquid Filed Gauge Minimized Vibration

• And Wear To Gauge Movement

• Quick And Accurate Response To Pressure Changes

• The Stationery Dial And Moving Pointer Is Easy Seen

​

Specifications

• Ambient Temperature: -77°F(-25°C) to + 131°F(+55°C)

• Operating Pressure Range: 75% of Scale Value

• Fork: Stainless Steel

• Movement: Brass

• Dial:Aluminum

• Pointer: Fixed

• Window: Perspex

• Case filling: Glycerine Filled

• Case&ring: Gun Metal Casting,

• Weather Proof Gray Hammertone Finish

• Mounting & Entry: Direct With Bottom

• Sensing Element: AISI 316L SS

• Diaphragm Chamber Material: Stainless Steel

• Sealing Fluid: Silicon Oil

• Mud Protection: Neoprene Rubber Pad

• Process Connection: 2"NPT(M)

• Process Conn.Material: Mild Steel,Anti-Corrosion Treated

• Accuracy: 3-2-3 (Grade B) 2-1-2 (Grade A)
