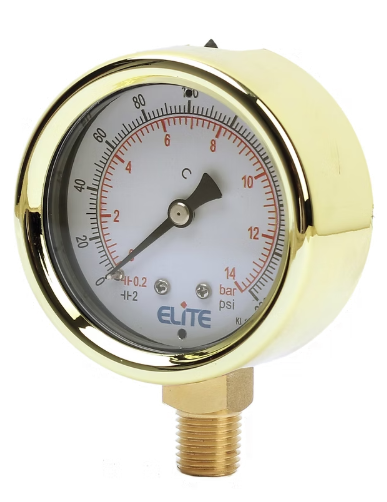

Details

---

Special Features

• Standard Followed ASME-B 40.1 / EN837-1

• Forged Brass Case

• Rugged Construction

• Dry or Liquid Version

• IP 65

​

Specifications

• Ambient Temperature: -4°F(-20°C) to + 150°F (+65°C)

• Process Temperature: Max.248°F (120°C)

• Operating Pressure Range: 75% of Scale Value

• Over Pressure Limit: 125% of Max.Scale Value

• Case: Forged brass

• Joints: Alloy brazing/Soldering

• Socket: Copper Alloy

• Bourdon: Copper Alloy

• Movement: Copper Alloy

• Dial: Aluminum

• Pointer: Fixed

• Window: PC Lens

• Range: Vacuum to 6000PSI
