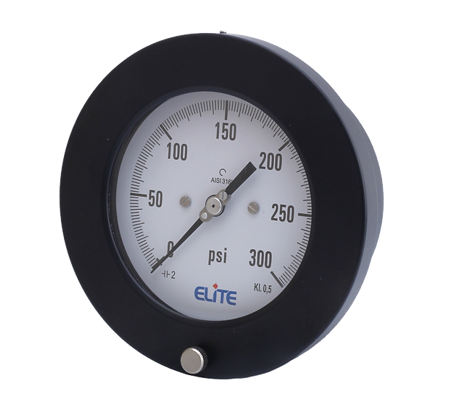

Details

---

Special Features

• Aluminum solid front case
• Blow out back
• Standard follows ASME-B.40.1
• SS 316L Socket & Bourdon
• Helium Leak Tested
• Built-in Stabilizer Movement
• Ready For Oxygen Use
• Internal Vacuum /Overpressure Stop
• IP 55

Specifications

• Ambient Temperature: -4°F (-20°C) to 150°F (+65°C)
• Process Temperature: Max. 392° F (200°C)
• Operating Pressure Range: 75% of scale value
• Over Pressure Limit: 125% of Max. scale value
• Case: Aluminum
• Joints: TIG Argon Arc Welding
• Socket: AISI 316L
• Bourdon: AISI 316L
• Movement: AISI 304
• Dial: Aluminum
• Pointer: Micro Zero Adjustable
• Window: PC Lens
• Ranges: Vacuum to 10,000 psi
